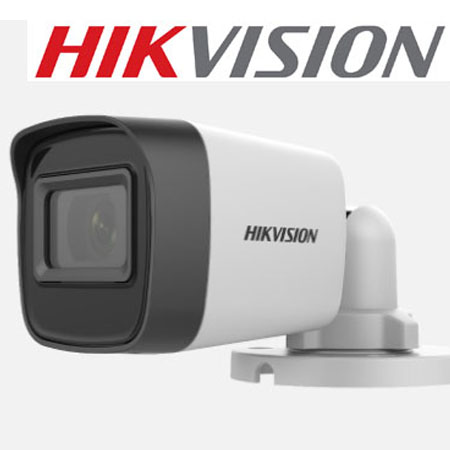

HIKVISION DS-2CE1ADOT-ITP\ECO 2MP CAMERA

Camera

• Image Sensor2 MP CMOS image sensor
• Signal SystemPAL/NTSC
• Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
• Resolution1920 (H) ×1080 (V)
• Min. illumination0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens2.8 mm, 3.6 mm fixed lens
• Horizontal Field of View103°(2.8 mm), 82.2°(3.6 mm)
• Lens MountM12
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• SynchronizationInternal synchronization
• WDR (Wide Dynamic Range)DWDR

Menu

• Image ModeSTD/HIGH-SAT
• AGCSupport
• Day/Night ModeSmart/color/BW(Black and White)
• Backlight CompensationSupport
• DWDRSupport
• LanguageEnglish
• FunctionsBrightness, Sharpness, DNR, Mirror

Interface

• Video Output1 HD analog output

General

• Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
• Power Supply12 VDC±15%
• Power ConsumptionMax. 4 W
• Ingress ProtectionIP66 Material Plastic
• IR RangeUp to 20 m
• DimensionsØ 60.5 mm × 145.63 mm (Ø 2.38″ × 5.73″)
• WeightApprox. 140 g (0.31 lb.)
